Plate and Frame Filter plate

A plate and frame filter plate is part of one of the earliest and most flexible filter press designs. Unlike recessed chamber plates — where the filtration cavity is formed by the plate body itself — a plate and frame system alternates flat filter plates with separate frames. The frame defines the chamber depth and controls cake thickness, while filter cloth or filter paper is placed between the plate and frame to achieve solid-liquid separation.

PP and PVDF materials for corrosion-resistant fine filtration
Adjustable cake thickness by changing frame depth
Accepts filter paper for tighter particle retention
OEM replacement plates matched to your existing equipment
Compatible with most major filter press brands worldwide

filter plate sizes

HUSTON manufactures plate and frame filter plates in a wide range of sizes beyond those listed. Contact us with your plate dimensions and filter press model for a tailored quotation.

720mm plate

Suitable for medium-scale fine filtration and polishing applications. Center or corner feed. Custom cake thickness available on request.

1000mm plate

Designed for larger filtration capacity with stable sealing performance. Compatible with most standard filter press frames of this size.

1200mm plate

Ideal for high-volume industrial filtration. Reinforced structure withstands sustained operating pressure with consistent cake formation.

Custom filter press plates

Every filter press application is different. HUSTON provides fully customized plate and frame filter plates — from non-standard dimensions to special chemical-resistant materials — engineered to match your exact equipment and process requirements.

By drawing: Send 2D drawings or CAD files. We manufacture to exact dimensions and tolerances.
By sample: Send a worn or broken plate. We measure, replicate and improve where needed.
By press brand: Provide your filter press brand and model. We confirm compatibility before production.
By process conditions: Tell us your slurry, pressure and moisture target. We select the right material and plate configuration.

Key specifications

Specification	Details
Plate Size	250 × 250 mm to 2000 × 2000 mm; custom sizes available
Cake Thickness	20–50 mm, adjustable to project requirements
Operating Pressure	8–16 bar for PP/GFPP; membrane squeezing up to ~25 bar
Feed Type	Center feed, corner feed, top feed, side feed
Drainage Surface	Ribs, pips/nubs, grooves or grid pattern
Sealing & Material Options	EPDM, NBR, Neoprene, FKM/Viton; non-gasketed, gasketed or CGR; temperature up to 85 °C PP / 120 °C PVDF

How Filter Plates Are Made

Every HUSTON plate and frame filter plate goes through a controlled manufacturing process — from raw material selection to final pressure testing — to ensure consistent dimensional accuracy, sealing reliability and long service life.

Raw material inspection — PP and PVDF granules are tested for grade consistency before entering production.
Compression molding — Plates are formed under precise temperature and pressure conditions to ensure uniform density and structural integrity.
CNC machining — Sealing edges, feed ports, corner holes and drainage surfaces are machined to tight tolerances for accurate fit and leak-free assembly.
Dimensional inspection — Each plate is measured against engineering drawings before moving to the next stage.
Hydraulic pressure testing — Every finished plate is individually pressure-tested to verify seal integrity before shipment.

Huston

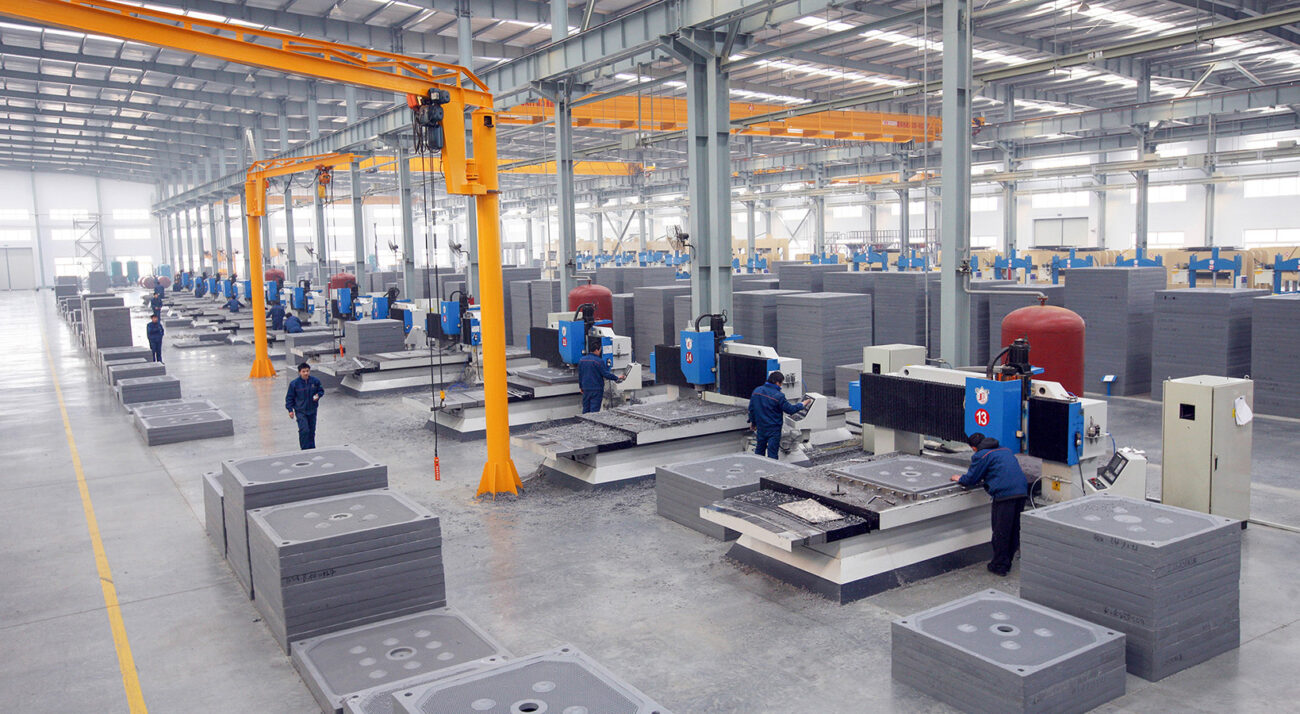

our factory

HUSTON operates a fully equipped manufacturing facility in China, combining precision tooling, rigorous quality control and experienced engineering to deliver world-standard filter press plates.

Huston

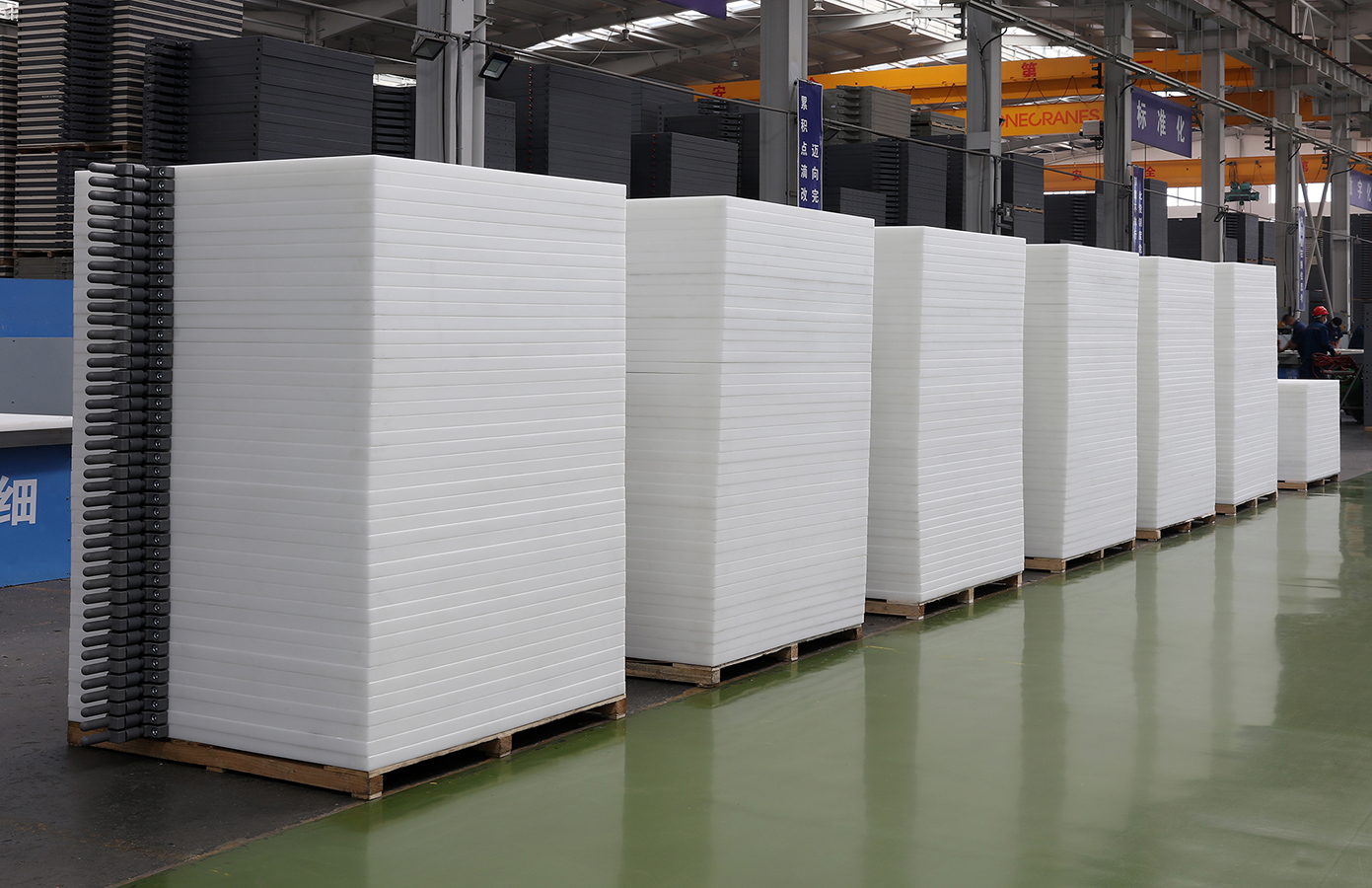

filter plate Shipping

We ship filter press plates globally with reliable packaging, flexible logistics options and on-time delivery — ensuring your plates arrive safely, ready to install.

Get a Quote

Not sure which plate is right for you?

Share the details below and our engineers will recommend the optimal membrane plate configuration, diaphragm material and squeezing parameters — at no cost and with no obligation to buy.

Slurry information — material name, solid content (%), particle size, pH, temperature, viscosity, and whether the slurry contains oils, solvents or corrosive agents
Target cake moisture — desired moisture content (%) after filtration, and whether cake washing or air blowdown is required
Equipment dimensions — filter press brand and model, plate size, number of plates, chamber depth, feed type and whether a squeeze medium supply line already exists

Send your details via the inquiry form below or email us directly. We typically respond within 24 hours.
